Permanent Coating Turns Standard Tile into ESD Tiles

Permanent Coating Turns Standard Tile into ESD Tiles by Permanent Coating Turns Standard Tile into ESD Tiles
  • Save the Cost and Disruption of Tearing Out the Old Tiles!
  • Premium Static Control that Rivals ESD Tiles at 1/4 the Cost
  • Warranted to EASILY pass ANSI/ESD S20.20-2021
  • Outstanding Time Tested Longevity

Standard vinyl composition tiles (or VCT as it’s known in the industry) has been a mainstay floor covering for well over 50 years. It’s probably the most popular floor covering in the world. Why? It’s robust, bonds very well to concrete, is inexpensive and can handle many rolling loads with ease.

The Problem? VCT is highly insulative!

Tribo-electrification (contact and separation between a person’s shoes or rolling carts in combination with the VCT) generates static potential in the thousands of volts. VCT just can’t provide the level of ESD control required in static control environments (antistatic floor finish doesn’t have enough conductivity or longevity). Covering standard VCT with ElectraGuard is reliable, saves the costly removal of the VCT (or VAT) and provides outstanding longevity in concert with premium static control performance. ElectraGuard ESD epoxy is much more resilient than mere ESD floor paints. ElectraGuard is warranted for lifetime conductivity, it’s economical, long lasting and very resistant to chemicals. The ElectraGuard Hi Gloss System may be high speed polished for a mirror like shine and easy removal of scuff marks.

ElectraGuard meets or exceeds the latest specifications for static control including ANSI ESD S 20.20-2021, 97.1 and 97.2 and NFPA 484 (for 3D Printing).

Installation Overview: Remove floor wax and coatings that may interfere with the adhesion of the ElectraGuard Floor Paint by stripping the floor with ElectraStrip. Follow the directions for use and observe the safety precautions listed in the SDS sheet when using this product. Double rinse the tiles with cool clean water and allow the tiles to thoroughly dry. Install the electrical floor ground. Install a bond strength test kit and observe the results. If the results prove good adhesion roll 3 coats of ElectraGuard (one per day for three days). After the final coat allow 24 hours for the paint to cure and mop on 2 thin coats of ElectraThane and one very thin coat of ElectraGlaze. These sealers may be applied all in the same day. Please see the full instructions prior to using this system.

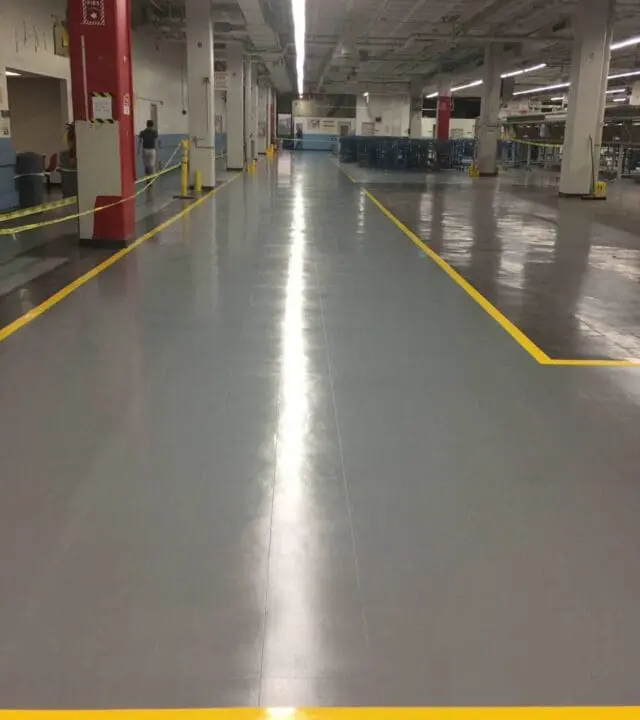

Click to view: USPS Main Distribution Center, NYC (install by United SCP)

Click to view: Thermalogic, Boston MA (Install by United SCP)
