Description

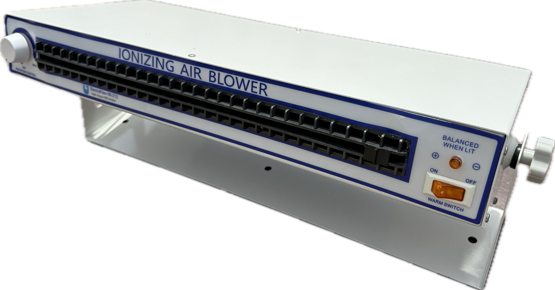

ElectraFlow® HDO-212 High Output, Wide Coverage, Horizontal ESD Ionizer with Comfort Warming Function
The HDO-212 Bench top ESD Ionizer for static control provides a thin yet WIDE plane of ionized air to eliminate static voltages across the entire bench top surface. This powerful yet controllable ionized air stream is PERFECT for electronic assembly and removing the final traces of static from insulative objects and sub assemblies.
The HDO-212 easily covers a 24″ x 48″ area with up to a 190 CFM output for the most demanding scenarios. This ionizer has an warming function for employee comfort on cold days. The robust design insures long term satisfaction, ease of maintenance and self balancing emitters that will last for years. Should replacement parts ever be needed they are stocked in Colorado.
HDO-212 Benchtop ESD Ionizer – Features
- Powerful! Up to 190 CFM our ionized air output!
- Patented balanced ion output, no calibration required!
- Ion generation indicator lamp.
- Infinitely adjustable high output multi speed fan.
- Certificate of compliance at no charge with each unit.
- Precision +/- 10 volt offset voltage balance!
- Perfect for benchtop use or under shelf mount.
- Aluminum alloy housing, powder coated ANTI STATIC finish.
- The HDO-212 meets or exceeds the recommended technical requirements of ANSI/ESD S 20.20- 2021 tested in accordance with STM3.1.
HDO-212 Benchtop ESD Ionizer – Physical Specifications
- Operating Voltage: 110V/60Hz standard, 220V/50Hz optional
- Current Consumption: 3.30 to 1.65 Amp
- Operating Temperature: 32o F. – 122o F. (0 ~50°c)
- Air Coverage: 24″ x 24″ (60cm x 60cm)
- Air Volume: 45~190 CFM
- Size (including stand): 22″ (L) x 10″ (W) x 5″ (H)”
- Weight: 19 Lbs (8.6kg)
- Antistatic aluminum alloy housing.
- Decay Rate @ 300 mm
- Positive 1.1
- Negative 1.2
- Offset Voltage
- Postive / Negative < +/- 10 V
HDO-212 Benchtop ESD Ionizer – Installation Overview
The HDO-212 Benchtop ESD Ionizer features an attached heavy duty adjustable metal stand with a non marring, non slip base. The SL-010 may be simply placed on work bench, bolted to the underside of a work bench shelve. The HDO-212 may also be bolted to work bench overhead beams using the adjustable mounting stand included with your order.
Electrical Requirements: The HDO-212 Benchtop ESD Ionizer requires 110VAC /60Hz (standard) or 220VAC / 50Hz (optional) power. These units must be grounded. The instrument is equipped with a 3 prong grounded US male plug (standard). Do not modify the plug or use an ungrounded 3 prong receptacle. If an extension cord is required use heavy gauge fully grounded cords only.
HDO-212 Benchtop ESD Ionizer – Operating Procedure
Activate the HDO-212 benchtop ionizing blower by turning fan speed knob clockwise. The ionization indicator will illuminate and indicate the presence of ionized air. Airflow speed can easily be adjusted utilizing the fan speed knob. The time required to neutralize electrostatic potential is dependent on distance of ionizer to work surface and speed of fan. When used in electronic assembly the ionized air stream should cover as much of the working area as possible. The constant flow of ionized air prevents items from developing an electrostatic potential.
HDO-212 Benchtop ESD Ionizer – Routine Maintenance Overview
Clean emitter as needed. To clean ion emitter points slide the built in brush tab (located in middle of air outlet) across the face of the ionizer several times. Clean the air inlet and outlets as needed with a soft brush or vacuum. Periodically test ion output as indicated by your internal ESD program or the most recent ANSI/ESD S 20.20 TR53, Air Ionizer Compliance Verification (discharge time and offset voltage). Offset voltages of that exceed specification may indicate the need for replacement of emitters. Normal emitter life is 3 years, replacement emitter rings are stocked by United and are easy to install.
Extended Information
The HDO-212 ESD bench top ionizer provides a wide, narrowly focused plane of ionized air to control static across a sizable area of the work surface. This powerful yet easily controllable ionized air stream is PERFECT for electronic assembly and removing the final traces of static from insulative objects and sub assemblies.
Compare this product to the high overhead big boys! They make a great unit and so do we. BUT our HDO-212 is higher output, competitively priced, ISO manufactured and higher quality! Call United SCP, save your ESD program a substantial amount of money and get the high quality and performance you demand from a reliable supplier with a great ionizer and a proven track record!
Free shipping Details
United Static Control Products provides free shipping of this instrument to locations in the lower 48 states. This offer is limited to us shipping standard freight and using a carrier of out choice.
