Description
- Outstanding quality, ISO manufactured!
- Powerful performance, highly reliable!
- Low maintenance. Easy to maintain!
- Certificate of compliance provided at no charge!
- Precision + / – 10 volt offset voltage balance!
- Built in emitter cleaning brush (point cleaner knob).
- Self-balancing, factory calibrated!
- NO further calibration typically required.
- Mounting brackets included at no charge!
Specifications Details
| Specification | Value |
|---|---|
| Current Draw | Max 0.9 Amp (fan high, light on) Min 0.45 Amp (fan low, light off) |
| Operating Temperature | 0 ~50°c (32o F to 122o F) |
| Weight | 5.3 kg (11.68 pounds) |
| Finish and Casing Material | Powder coated aluminum alloy |
| Size | 610 (L) x 170 (W) x 120 (H) mm (24.2 x 6.69 x 4.72 inches) |
| Size | 610 (L) x 170 (W) x 120 (H) mm (24.2 x 6.69 x 4.72 inches) |
| Air Volume Output | Fan speed low: 80 CFM, Fan speed high: 220 CFM, Note: Flow amount equals sum of dual fan operation. |
| Recommended Distance from Surface | 600 to 900mm (24 to 36 inches) |
Decay Test Results
Testing Condition, decay time in seconds, average
Operating Voltage: 110V/220V, Testing Voltage: 1kV to 100V, Temperature: 22°c
| Distance | 300mm | 600mm | 900mm |
|---|---|---|---|
| Left | 1.4 | 2.1 | 3.2 |
| Center | 1.2 | 1.9 | 2.5 |
| Right 300mm | 1.3 | 2.0 | 2.5 |
Note the following are overviews, please see manual (included with product) for full details.
Installation Fast Facts

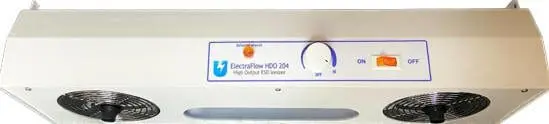

Install fluorescent light bulb into ionizer by removing front cover with a screw driver, unpacking bulb, screwing into place and replacing the front panel. The HDO-204 is an overhead unit designed to provide ideal coverage for control of electrostatics. Note: Do not insert objects into air intake or outlet grille and do not operate the HDO-204 in inflammable or explosive environments. The HDO-204 ionizers should be affixed 600 to 900mm (24 to 36 inches) above the work surface with center targeted directly over work area. Avoid drafty locations such as that caused by air conditioning, heater outlets, etc.
Attachment to overhead supports
S hooks and chains may be used for mounting these ionizers to structurally sound ceilings or wire shelves. Chains and mounting hardware should have a minimum safe working load of at least 50 pounds. When mounting the unit to ceilings it is important to check state and local codes to insure compliance. These units are typically hung in the same fashion as an overhead light fixtures (independently attached to the overhead building superstructure). Attachment to suspended ceilings only are typically not compliant with local codes. Mounting to workbench overhead supports: These ionizers may be mounted to work bench overhead shelves and beams using the supplied side mounting bracket in conjunction with angle iron, bolt on L brackets etc. These ionizers may be used either horizontally or vertically.
Electrical Requirements
The HDO-204 requires 110VAC /60Hz (standard) or 220VAC / 50Hz (optional) power. These units must be grounded. Each unit is supplied with standard US 3 prong male grounded power plug (standard). Do not modify the plug or use an ungrounded 3 prong receptacle. If an extension cord is required use heavy gauge fully grounded cords only.
Operating Procedure
Activate the HDO-204 overhead ionizing blower by turning fan speed knob clockwise. The ionization indicator will illuminate and indicate the presence of ionized air. Airflow speed can easily be adjusted from 0 to 100% utilizing the fan speed knob. Light is provided via a simple on/off switch. The time required to neutralize electrostatic potential is dependent on distance of ionizer to work surface and speed of fans. When used in electronic assembly the ionized air stream should cover as much of the working area as possible. The constant flow of ionized air prevents items from developing an electrostatic potential and neutralizes electrostatic charges present on items introduced to the airflow.
Routine Maintenance
Clean emitters as needed (usually every two to three weeks in heavy service). To clean ion emitter points press and turn point cleaner knob (located at each air outlet) clockwise approximately one turn and release. Clean air inlet and outlets as needed with a soft brush or vacuum. Periodically test ion output as indicated by your internal ESD program or ANSI/ESD S 20.20-2021, TR53, Air Ionizer Compliance Verification (discharge time and offset voltage). Offset voltages of > +/- 35 volts or decay times that exceed user defined specifications (typically <1.1 sec @ 60%rH and 68 deg F. with ionizer positioned 24″ from work surface) may indicate the need for replacement of emitters. Normal emitter life is 5 years, replacement emitters are easy to install and available from United SCP.
